MCP73871-2CCI/ML: Features, Specs & More
In the fast-paced world of electronics, reliable battery management is essential. The Microchip MCP73871-2CCI/ML is a linear battery charger controller designed for Li-Ion and Li-Pol batteries. In this comprehensive article, we'll delve into the intricacies of the MCP73871-2CCI/ML, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MCP73871-2CCI/ML's Manufacturer
MCP73871-2CCI/ML's Overview
The MCP73871-2CCI/ML is a linear battery charger controller that supports Li-Ion and Li-Pol batteries. It regulates battery charging with a fixed output voltage of 4.2V and can supply up to 1000mA of charge current. It operates reliably across a wide temperature range and industrial-grade supply voltage, ensuring consistent performance in demanding environments.
Key Features
Let's delve into the standout features that make the MCP73871-2CCI/ML a standout in the world of electronics:
· The MCP73871-2CCI/ML supports Li-Ion and Li-Pol batteries.
· It provides a maximum output current of 1000mA.
· The output voltage is fixed at 4.2V for optimal battery performance.
· The device operates with supply voltages ranging from 4.5V to 6V.
· It features a typical supply current of 2.5mA.
· Industrial-grade temperature support spans from -40°C to 85°C.

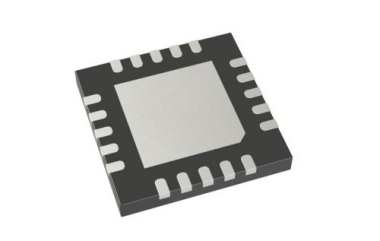

· The charger comes in a 20-pin QFN EP package with surface-mount compatibility.
· Its compact 4x4x0.88mm package simplifies PCB integration.
· The MCP73871-2CCI/ML uses no-lead pins to reduce soldering complexity.
· Packaging is supplied in tubes for easy assembly and handling.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MCP73871-2CCI/ML:
Type | Parameter |
Type | Linear Battery Charger Controller |
Battery Type | Li-Ion|Li-Pol |
Maximum Supply Current (mA) | 2.5(Typ) |
Minimum Operating Supply Voltage (V) | 4.5 |
Maximum Operating Supply Voltage (V) | 6 |
Output Voltage (V) | 4.2 |
Output Current (mA) | 1000 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 0.88 |
Package Width | 4 |
Package Length | 4 |
PCB changed | 20 |
Standard Package Name | QFN |
Supplier Package | QFN EP |
Pin Count | 20 |
Lead Shape | No Lead |
* MCP73871-2CCI/ML's Datasheet
Applications
The MCP73871-2CCI/ML is ideal for a wide range of electronics designs. It is commonly used in:
· Portable consumer electronics
· IoT devices and sensors
· Industrial control systems
· Handheld medical devices
· Battery-powered embedded systems
· Energy-efficient gadgets that require safe Li-Ion or Li-Pol charging
MCP73871-2CCI/ML's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The MCP73871-2CCI/ML is a versatile and robust linear charger controller that balances performance, efficiency, and reliability. Its industrial-grade temperature tolerance and compact surface-mount package make it suitable for both consumer and industrial electronics. Designers seeking a dependable Li-Ion or Li-Pol charging solution will find the MCP73871-2CCI/ML an excellent choice.
